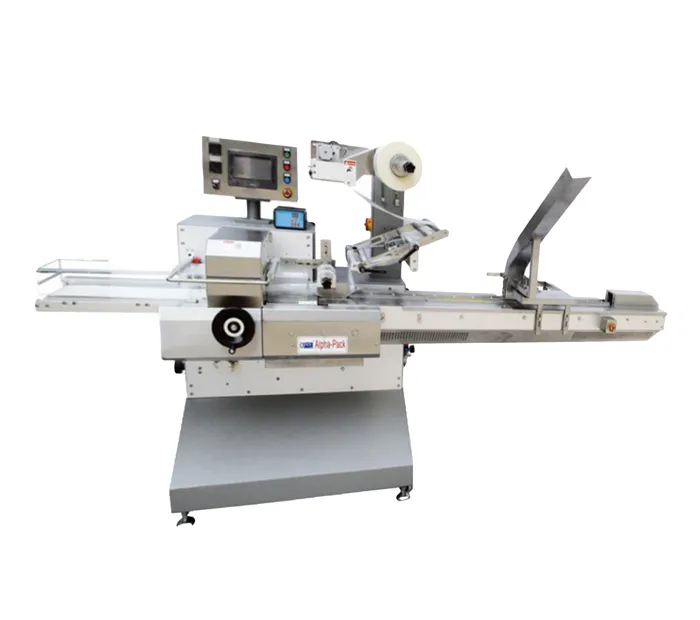

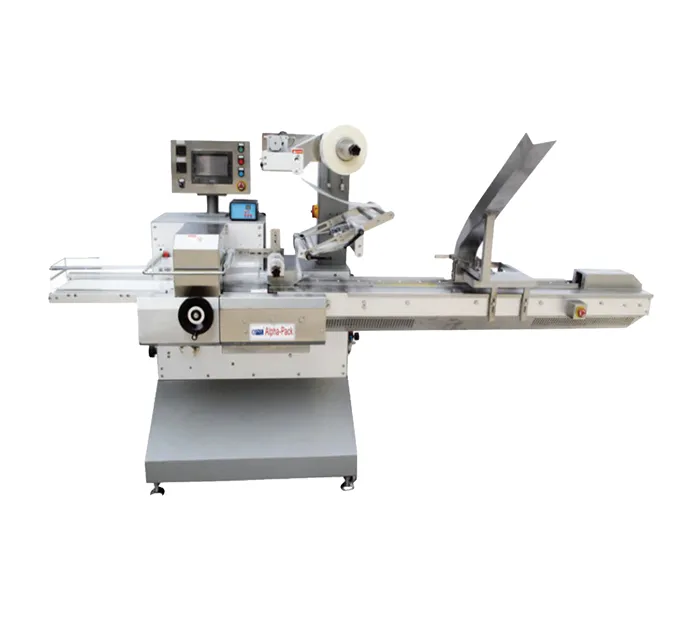

AHP-500-S3 Servo Driven Top Film Horizontal Flow Wrapper Machine

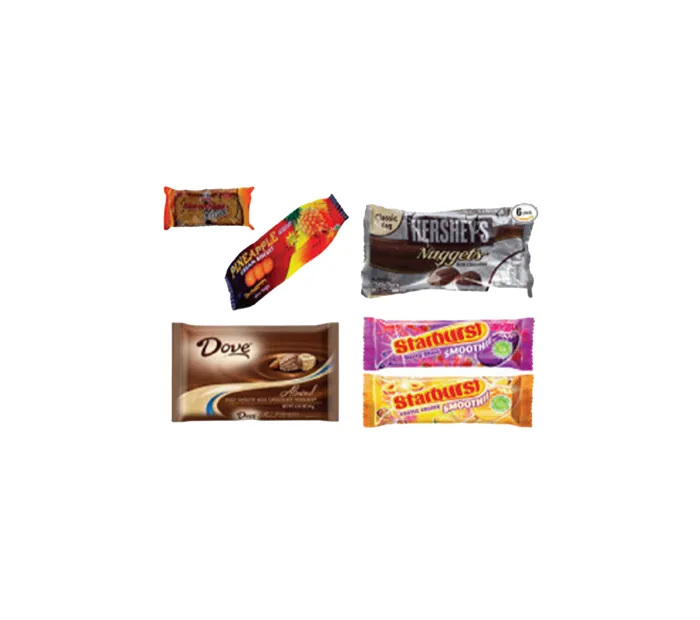

AHP-500-S3 is applicable for packing all kinds of solid and regular objects, including the foods such as biscuit, bread, instant noodle, ice cream, moon cake and soft sweets, and other objects such as toilet soap, medicated essence, note book, pen pack, tape and medicines in regular shapes.

ahp-500-s3 servo driven top film horizontal flow wrapper machine
ahp-500-s3 servo driven top film horizontal flow wrapper machine
ahp-500-s3 servo driven top film horizontal flow wrapper machine
ahp-500-s3 servo driven top film horizontal flow wrapper machine
Contact us

Features of AHP-500-S3 Servo Driven Top Film Horizontal Flow Wrapper Machine


1. Advanced PLC control system combined with 5.7'' colorful touch screen.

2. Servo driving system, film speed auto-matically synchronized with conveyor speed.

3. End seal jaw speed adjustable by a hand wheel when bag length change.

4. All parts are built for easy maintenance and cleaning.

5. Pulling wheels open by means of pneumatic switches.

6. Safety guards as required by European law and comply with CE standard.

7. Photocell for printed film and date code can be installed.

Specifications of AHP-500-S3 Servo Driven Top Film Horizontal Flow Wrapper Machine


Technical Specification
Model No.AHP-500-S3
Bag Length60-800mm
Bag Width80-230mm
Speed10-150pcs/min
Voltage220V/380V
Power3.8kw
Max. Film Width500mm


Video of AHP-500-S3 Servo Driven Top Film Horizontal Flow Wrapper Machine
