To Know Alpha-Pack More

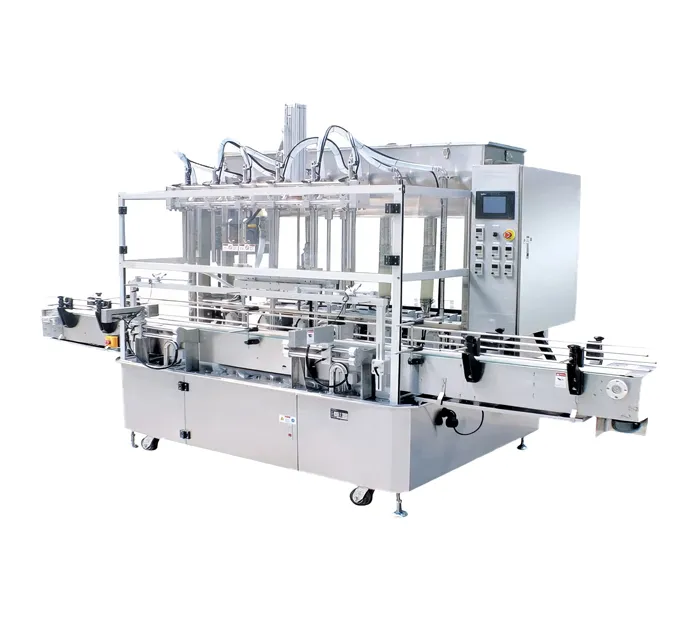

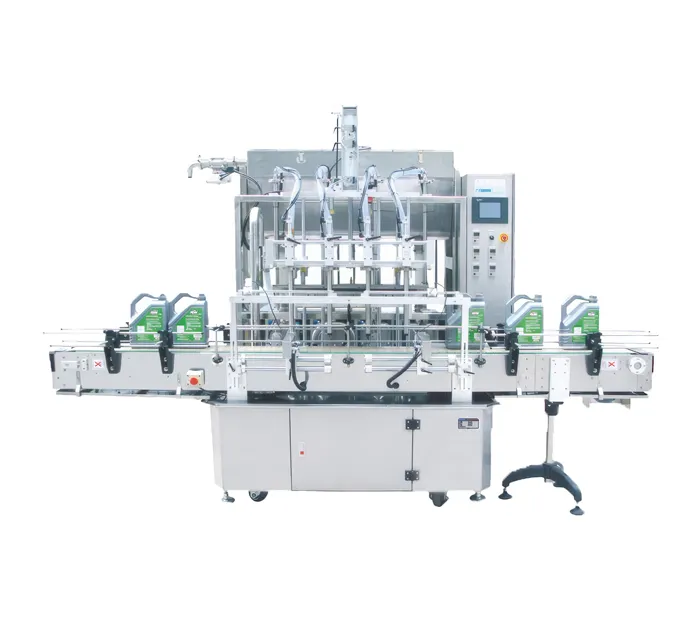

1. Machine construction in Stainless Steel #304.
2. Each rotary lobe pump is driven by an individual motor for high accuracy liquid filling, making the lobe pump filling machine highly precise.
3. PLC combined with touch screen contol system. Filling volume can be easily adjusted separately.
4. No change parts are required for different bottle sizes.
5. Diving type filling system prevents spillage during filling.
6. No bottle, no filling safety device.
7. 20 job memory for easy recall.
8. You can choose A type, B type or C type for different filling range.
| Technical Specification | |||
| Model No. | APFM-840 | APFM-860 | APFM-880 |
| Filling Nozzle No. | 4 | 6 | 8 |
| Max. Filling Capacity | 24 Bottles/min | 36 Bottles/min | 48 Bottles/min |
| Filling Range | A: 30-500ml; B: 100-1000ml; C: 500-5000ml | ||
| Power | 200V/1Ph, 50/60Hz | ||
| Filling Pump | Stainless Steen Rotary Lobe Pump | ||
